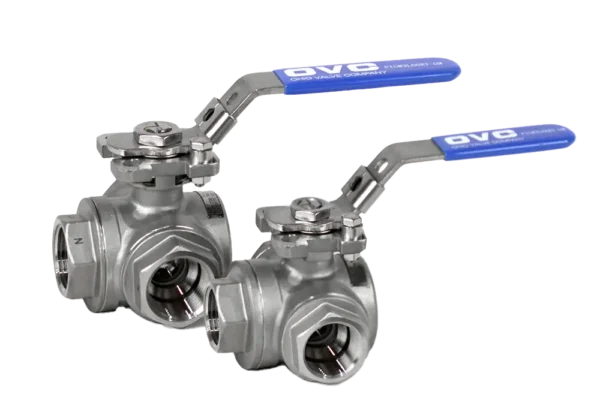

DESIGN FEATURES
| Sizes | 1/4" - 2" | |
| Class | Figure | |
| Pressures | 1000 WOG | 3T66RTDM |
| 1000 WOG | 3L66RTDM | |
| Material | CF8M | |
| Ends | Threaded | |
| Ports | T-Port & L-Port | |
| Trim | RTFE Seats; PTFE Packing & Gasket; Viton O-Rings | |
| Features | Slide Latch Locking Device; ISO 5211 Direct Mounting Pad; Pressure Relief Vent on Ball; 150 PSIG Saturated Steam Rating | |
| ITEM | PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A351-CF8M |
| 2 | CAP-A | ASTM A351-CF8M |
| 3 | BALL | ASTM A351-CF8M |
| 4 | SEAT | PTFE/RTFE |
| 5 | STEM | SUS 316 |
| 6 | GASKET | PTFE/RTFE |
| 7 | THRUST WASHER | PEEK+PTFE |
| 8 | O-RING | VITON |
| 9 | PACKING | PTFE/RTFE |
| 10 | GLAND | SUS 304 |
| 11 | SPRING WASHER | SUS 301 |
| 12 | STEM NUT | SUS 304 |
| 13 | STOP WASHER | SUS 304 |
| 14 | HANDLE WASHER | SUS 304 |
| 15 | LOCKING DEVICE | SUS 304 |
| 16 | HANDLE | SUS 304 |
| 17 | PLASTIC COVER | PLASTIC |
| 18 | CAP-B | ASTM A351-CF8M |
| 19 | GASKET | PTFE/RTFE |
| 20 | STOP PIN | SUS 304 |
| 21 | BOLT | SUS 304 |
| 22 | NUT | SUS 304 |
| NPS | d | L | L1 | H | H1 | W | S | S1 | E | Ra | Rb | Torque (in-lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.25 | 0.46 | 2.99 | 2.36 | 2.87 | 0.35 | 4.84 | 1.42 | 1.65 | 0.35 | 0.12 | 0.12 | 126.6 | 1.8 |
| 0.375 | 0.49 | 2.99 | 2.36 | 2.87 | 0.35 | 4.84 | 1.42 | 1.65 | 0.35 | 0.12 | 0.12 | 126.6 | 1.5 |
| 0.5 | 0.49 | 2.99 | 2.36 | 2.87 | 0.35 | 4.84 | 1.42 | 1.65 | 0.35 | 0.12 | 0.12 | 126.6 | 1.5 |
| 0.75 | 0.63 | 3.39 | 2.83 | 2.99 | 0.35 | 4.84 | 1.42 | 1.65 | 0.35 | 0.12 | 0.12 | 172.6 | 2.4 |
| 1 | 0.79 | 3.9 | 3.16 | 3.43 | 0.43 | 6.02 | 1.65 | 1.97 | 0.43 | 0.12 | 0.14 | 241.6 | 3.5 |
| 1.25 | 0.98 | 4.61 | 3.72 | 3.66 | 0.43 | 6.02 | 1.65 | 1.97 | 0.43 | 0.12 | 0.14 | 322.2 | 4.9 |
| 1.5 | 1.26 | 4.88 | 4.09 | 4.33 | 0.55 | 7.2 | 1.97 | 2.76 | 0.55 | 0.14 | 0.18 | 402.7 | 7.9 |
| 2 | 1.5 | 5.83 | 4.92 | 4.69 | 0.55 | 7.2 | 1.97 | 2.76 | 0.55 | 0.14 | 0.18 | 575.3 | 12.1 |
NOTE: The information and data in this product data sheet is provided on this website as a general guide only. The information and data displayed are accurate to the best of our knowledge, and may be revised at any time without notice. Ohio Valve Company assumes no responsibility for the accuracy of this information as displayed on this website. Contact Ohio Valve Company directly for the most current product dimensional data and general assembly drawings.
