156RT
Carbon Steel Reduced Port 1-Piece Ball Valve, 1000 WOG
DESIGN FEATURES
| Sizes | 1/4" - 2" | |
| Class | Figure # | |
| Pressures | 1000 WOG | 166RT |
| 1000 WOG | 156RT | |
| Material | CF8M & WCB | |
| Ends | Threaded | |
| Trim | 316 Stainless Steel Trim; PTFE Packing; RTFE Seats | |
| Features | Slide Latch Locking Device; 150 PSIG Saturated Steam Rating | |

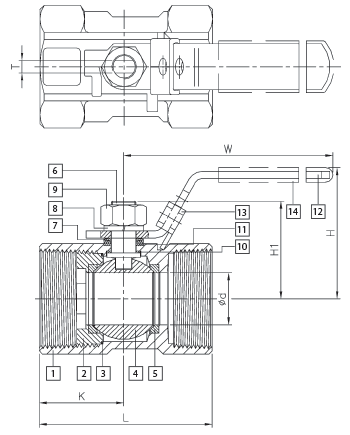

| NO. | DESCRIPTION | MATERIAL |
|---|---|---|
| 1 | Body | ASTM A216-WCB |
| 2 | Retainer | ASTM A216-WCB |
| 3 | Body Seal | PTFE |
| 4 | Ball | ASTM A351-CF8M |
| 5 | Ball Seat | RTFE |
| 6 | Stem | ASTM A276-316 |
| 7 | Flat Washer | AISI 304 |
| 8 | Spring Washer | AISI 304 |
| 9 | Stem Nut | AISI 304 |
| 10 | Thrust Washer | PTFE |
| 11 | Packing | PTFE |
| 12 | Handle | AISI 304 |
| 13 | Latch Lock | AISI 304 |
| 14 | Handle Sleeve | PVC |
| SIZE | ød | L | H | H1 | T | W | K | Torque | WT |
|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 0.20 | 1.54 | 1.50 | 0.67 | 0.12 | 2.43 | 0.79 | 8 | 0.15 |
| 3/8" | 0.28 | 1.73 | 1.62 | 0.84 | 0.16 | 2.89 | 0.91 | 9 | 0.23 |
| 1/2" | 0.35 | 2.22 | 1.60 | 1.03 | 0.20 | 3.73 | 1.14 | 11 | 0.39 |
| 3/4" | 0.49 | 2.32 | 1.74 | 1.13 | 0.20 | 3.73 | 1.14 | 16 | 0.57 |
| 1" | 0.59 | 2.80 | 2.22 | 1.44 | 0.24 | 4.39 | 1.38 | 26 | 0.93 |
| 1-1/4" | 0.79 | 3.07 | 2.44 | 1.59 | 0.24 | 4.43 | 1.50 | 44 | 1.65 |
| 1-1/2" | 0.98 | 3.27 | 2.49 | 1.83 | 0.31 | 6.30 | 1.59 | 66 | 1.87 |
| 2" | 1.26 | 3.94 | 2.70 | 2.01 | 0.31 | 6.32 | 1.93 | 79 | 2.98 |
| *Actual torques may vary. Please consult the factory. | |||||||||
NOTE: The information and data in this product data sheet is provided on this website as a general guide only. The information and data displayed are accurate to the best of our knowledge, and may be revised at any time without notice. Ohio Valve Company assumes no responsibility for the accuracy of this information as displayed on this website. Contact Ohio Valve Company directly for the most current product dimensional data and general assembly drawings.
