DESIGN FEATURES
| Sizes | 1/4" - 4" | |
| Class | Figure | |
| Pressures | 600 WOG | 200BRFTLH |
| 600 WOG | 200BRFT 1/2" - 4" | |
| Material | Brass | |
| Ends | Threaded | |
| Trim | Brass Stem; Chrome Plated Copper Ball; PTFE Packing & Seats | |
| Features | 150 PSIG Saturated Steam Rating; UL & CSA Listed up through 2” @ 400 WOG; NSF 61 Certified Up through 4” Rated @ 250 WOG; Slide Latch Locking Device through 2” | |

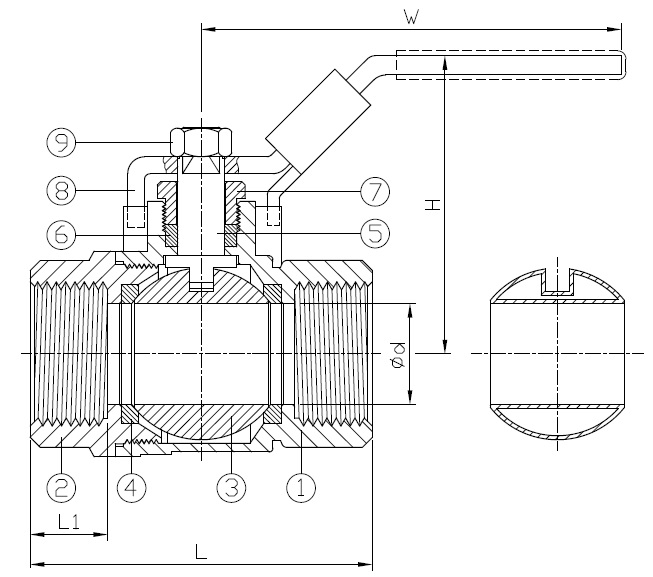

| ITEM | PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | C37700 |
| 2 | CAP | C37700 |
| 3 | BALL | CHROME PLATED C37700 |
| 4 | SEAT | PTFE |
| 5 | STEM | C37700 |
| 6 | PACKING | PTFE |
| 7 | GLAND | C37700 |
| 8 | HANDLE | 1008 |
| 9 | STEM NUT | A570-A |
| NPS | d | L | L1 | H | W | WEIGHT (lbs) |
|---|---|---|---|---|---|---|
| 1/4" | 0.39 | 1.76 | 0.46 | 1.88 | 3.54 | 0.4 |
| 3/8" | 0.39 | 1.76 | 0.46 | 1.88 | 3.54 | 0.4 |
| 1/2" | 0.58 | 2.05 | 0.52 | 2.09 | 3.54 | 0.5 |
| 3/4" | 0.75 | 2.36 | 0.56 | 2.24 | 3.78 | 0.8 |
| 1" | 0.94 | 2.76 | 0.63 | 2.67 | 4.53 | 1.2 |
| 1 1/4" | 1.26 | 3.3 | 0.71 | 3.05 | 4.53 | 1.8 |
| 1 1/2" | 1.57 | 3.66 | 0.72 | 3.48 | 5.51 | 2.6 |
| 2" | 1.97 | 4.18 | 0.75 | 3.84 | 5.51 | 3.7 |
NOTE: The information and data in this product data sheet is provided on this website as a general guide only. The information and data displayed are accurate to the best of our knowledge, and may be revised at any time without notice. Ohio Valve Company assumes no responsibility for the accuracy of this information as displayed on this website. Contact Ohio Valve Company directly for the most current product dimensional data and general assembly drawings.
