2366FTP
Stainless Steel Full Port 3-Piece PEEK Seated Ball Valve, Threaded Ends, Fire Safe
DESIGN FEATURES
| Sizes | 1/4" - 2" | |
| Class | Figure | |
| Pressures | 2000 - 1500 WOG | 2366FTP & 2366FWP |
| 2000 - 1500 WOG | 2356FTP & 2356FWP | |
| Material | CF8M & WCB | |
| Ends | Threaded & Socketweld | |
| Trim | 316 Stainless Steel Trim; Graphite Packing & Gasket; PEEK Seats good up to 600°F | |
| Features | Slide Latch Locking Device; Fire Safe; NACE MR0175; ISO 5211 Mounting Pad; 150 PSIG Saturated Steam Rating | |

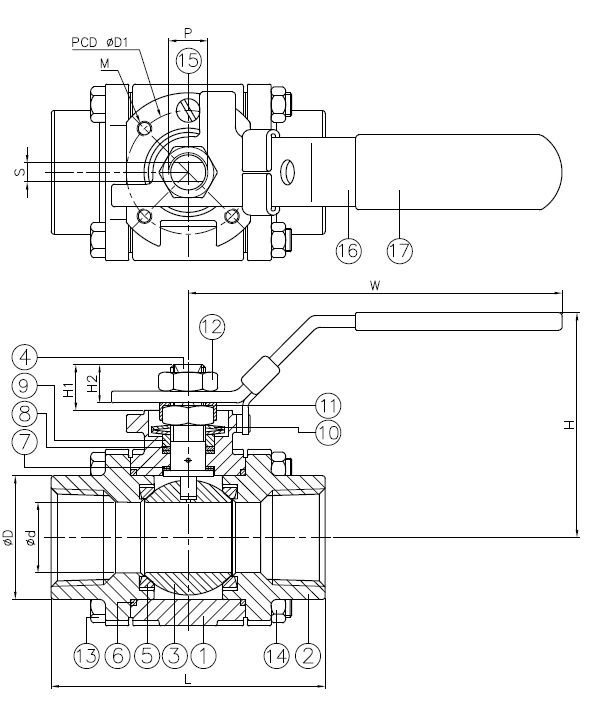

| ITEM | PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A351-CF8M |
| 2 | CAP | ASTM A351-CF3M |
| 3 | BALL | ASTM A351-CF8M |
| 4 | STEM | ASTM A276-316 |
| 5 | SEAT | PEEK |
| 6 | GASKET | GRAPHITE |
| 7 | THRUST WASHER | CTFE |
| 8 | PACKING | GRAPHITE |
| 9 | GLAND RING | AISI 304 |
| 10 | DISC SPRING | AISI 301 |
| 11 | LOCK PAD | ASTM A167-304 |
| 12 | STEM NUT | ASTM A194-8A |
| 13 | BOLT | ASTM A193-B8A |
| 14 | NUT | ASTM A194-8A |
| 15 | STOP PIN | AISI 304 |
| 16 | HANDLE | STAINLESS STEEL |
| 17 | HANDLE SLEEVE | PVC |

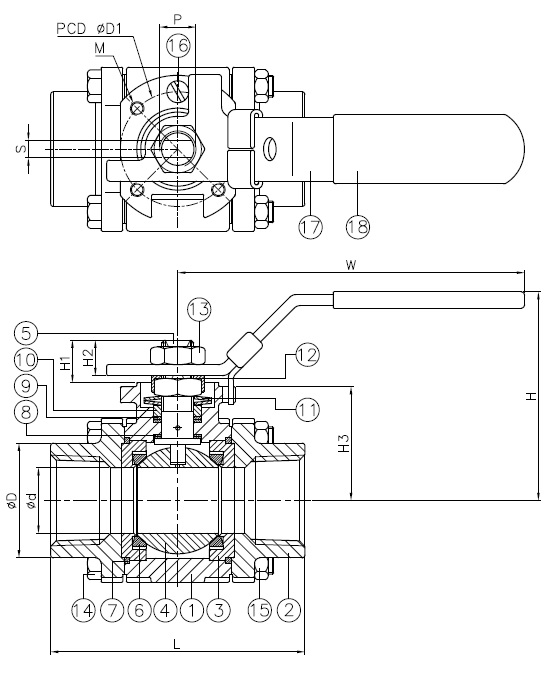

| ITEM | PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A351-CF8M |
| 2 | CAP | ASTM A351-CF3M |
| 3 | RETAINER | ASTM A351-CF8M |
| 4 | BALL | ASTM A351-CF8M |
| 5 | STEM | ASTM A276-316 |
| 6 | SEAT | PEEK |
| 7 | GASKET | GRAPHITE |
| 8 | THRUST WASHER | CTFE |
| 9 | PACKING | GRAPHITE |
| 10 | GLAND RING | AISI 304 |
| 11 | DISC SPRING | AISI 301 |
| 12 | LOCK PAD | ASTM A167-304 |
| 13 | STEM NUT | ASTM A194-8A |
| 14 | BOLT | ASTM A193-B8A |
| 15 | NUT | ASTM A194-8A |
| 16 | STOP PIN | AISI 304 |
| 17 | HANDLE | STAINLESS STEEL |
| 18 | HANDLE SLEEVE | PVC |
| Size (NPS) | d | D | L | H | H1 | H2 | W | S | D1 | M | P | ISO 5211 | Torque (in-lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 0.31 | 0.98 | 2.59 | 2.24 | 0.48 | 0.39 | 4.5 | 0.22 | 1.42 | M5*0.8 | 3/8"-24UNF | F03 | 189.4 | 1.6 |
| 3/8" | 0.39 | 0.98 | 2.59 | 2.24 | 0.48 | 0.39 | 4.5 | 0.22 | 1.42 | M5*0.8 | 3/8"-24UNF | F03 | 189.4 | 1.6 |
| 1/2" | 0.59 | 1.2 | 2.94 | 2.24 | 0.48 | 0.39 | 4.5 | 0.22 | 1.42 | M5*0.8 | 3/8"-24UNF | F03 | 189.4 | 1.7 |
| 3/4" | 0.79 | 1.42 | 3.16 | 2.35 | 0.57 | 0.42 | 4.5 | 0.22 | 1.42 | M5*0.8 | 3/8"-24UNF | F03 | 189.4 | 1.9 |
| Size (NPS) | d | D | L | H | H1 | H2 | H3 | W | S | D1 | M | P | ISO 5211 | Torque (in-lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1" | 0.94 | 1.76 | 3.66 | 3.21 | 0.61 | 0.55 | 1.66 | 5.75 | 0.3 | 1.65 | M5*0.8 | 7/16"-24UNF | F04 | 389.4 | 3.9 |
| 1 1/4" | 1.18 | 2.13 | 4.35 | 3.38 | 0.61 | 0.59 | 1.81 | 5.75 | 0.3 | 1.65 | M5*0.8 | 7/16"-20UNF | F04 | 389.4 | 6 |
| 1 1/2" | 1.5 | 2.44 | 4.72 | 3.81 | 1.07 | 0.74 | 1.9 | 7.09 | 0.34 | 1.97 | M6*1.0 | 9/16"-18UNF | F05 | 439 | 8.4 |
| 2" | 1.97 | 2.99 | 5.51 | 4.13 | 1.11 | 0.75 | 2.22 | 7.09 | 0.34 | 1.97 | M6*1.0 | 9/16"-18UNF | F05 | 997.5 | 13.5 |
NOTE: The information and data in this product data sheet is provided on this website as a general guide only. The information and data displayed are accurate to the best of our knowledge, and may be revised at any time without notice. Ohio Valve Company assumes no responsibility for the accuracy of this information as displayed on this website. Contact Ohio Valve Company directly for the most current product dimensional data and general assembly drawings.
