2366FTxS
Stainless Steel Full Port 3-Piece Ball Valve, Threaded & Socketweld Ends, Fire Safe
DESIGN FEATURES
| Sizes | 1/4" - 2" | |
| Class | Figure | |
| Pressures | 2000 - 1500 WOG | 2366FT & 2366FW & 2366FTxS |
| 2000 - 1500 WOG | 2356FT & 2356FW & 2356FTxS | |
| Material | CF8M & WCB | |
| Ends | Threaded, Socketweld, and THD x SWE | |
| Trim | 316 Stainless Steel Trim; Graphite Packing & Gasket; RTFE Seats | |
| Features | Slide Latch Locking Device; Fire Safe; NACE MR0175; ISO 5211 Mounting Pad; 150 PSIG Saturated Steam Rating | |

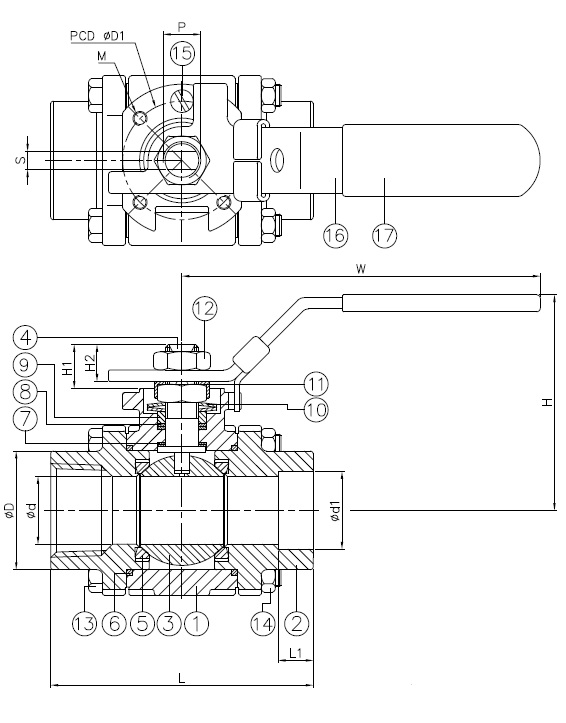

| ITEM | PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A351-CF8M |
| 2 | CAP | ASTM A351-CF3M |
| 3 | BALL | ASTM A351-CF8M |
| 4 | STEM | ASTM A276-316 |
| 5 | SEAT | RTFE |
| 6 | GASKET | GRAPHITE |
| 7 | THRUST WASHER | CTFE |
| 8 | PACKING | GRAPHITE |
| 9 | GLAND RING | AISI 304 |
| 10 | DISC SPRING | AISI 301 |
| 11 | LOCK PAD | ASTM A167-304 |
| 12 | STEM NUT | ASTM A194-8A |
| 13 | BOLT | ASTM A193-B8M |
| 14 | NUT | ASTM A194-8M |
| 15 | STOP PIN | AISI 304 |
| 16 | HANDLE | STAINLESS STEEL |
| 17 | HANDLE SLEEVE | PVC |

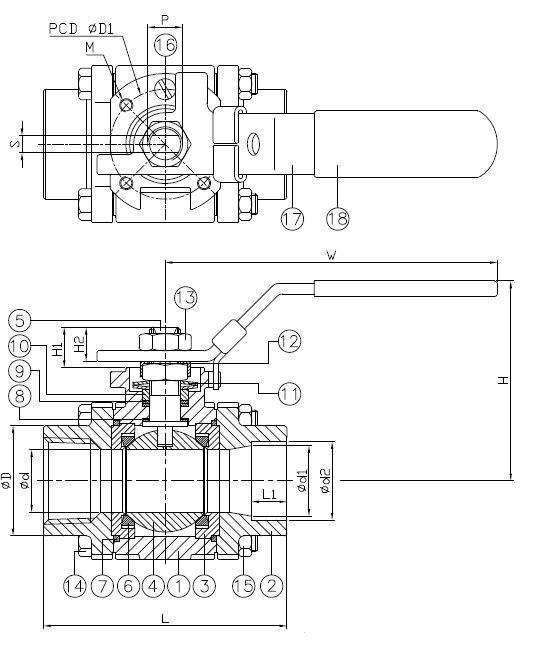

| ITEM | PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A351-CF8M |
| 2 | CAP | ASTM A315-CF3M |
| 3 | RETAINER | ASTM A351-CF8M |
| 4 | BALL | ASTM A351-CF8M |
| 5 | STEM | ASTM A276-316 |
| 6 | SEAT | RTFE |
| 7 | GASKET | GRAPHITE |
| 8 | THRUST WASHER | CTFE |
| 9 | PACKING | GRAPHITE |
| 10 | GLAND RING | AISI 304 |
| 11 | DISC SPRING | AISI 301 |
| 12 | LOCK PAD | ASTM A167-304 |
| 13 | STEM NUT | ASTM A194-8A |
| 14 | BOLT | ASTM A193-B8M |
| 15 | BUT | ASTM A194-8M |
| 16 | STOP PIN | AISI 304 |
| 17 | HANDLE | STAINLESS STEEL |
| 18 | HANDLE SLEEVE | PVC |
| NPS | d | d1 | D | L | H | H1 | H2 | W | S | D1 | ISO 5211 | M | P | TORQUE (IN-LB) | WEIGHT (LB) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 0.31 | 0.55 | 0.98 | 2.59 | 2.24 | 0.48 | 0.39 | 4.47 | 0.22 | 1.42 | F03 | M5*0.8 | 3/8"-24UNF | 33.8 | 1.6 |
| 3/8" | 0.39 | 0.71 | 0.98 | 2.59 | 2.24 | 0.48 | 0.39 | 4.47 | 0.22 | 1.42 | F03 | M5*0.8 | 3/8"-24UNF | 33.8 | 1.6 |
| 1/2" | 0.59 | 0.87 | 1.19 | 2.94 | 2.24 | 0.48 | 0.39 | 4.47 | 0.22 | 1.42 | F03 | M5*0.8 | 3/8"-24UNF | 33.8 | 1.7 |
| 3/4" | 0.79 | 1.08 | 1.42 | 3.16 | 2.35 | 0.57 | 0.42 | 4.47 | 0.22 | 1.42 | F03 | M5*0.8 | 3/8"-24UNF | 45.1 | 1.9 |
| NPS | d | d1 | d2 | D | L | H | H1 | H2 | W | S | D1 | ISO 5211 | M | P | TORQUE (IN-LB) | WEIGHT (LB) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1" | 0.94 | 1.05 | 1.36 | 1.76 | 3.66 | 3.21 | 3.21 | 0.55 | 5.75 | 0.3 | 1.65 | F04 | M5*0.8 | 7/16"-20UNF | 90.2 | 3.8 |
| 1-1/4" | 1.18 | 1.38 | 1.69 | 2.13 | 4.35 | 3.38 | 3.38 | 0.59 | 5.75 | 0.3 | 1.65 | F04 | M5*0.8 | 7/16"-20UNF | 141 | 6 |
| 1-1/2" | 1.5 | 1.61 | 1.93 | 2.44 | 4.83 | 3.81 | 3.81 | 0.74 | 7.09 | 0.34 | 1.97 | F05 | M6*1.0 | 9/16"-18UNF | 186 | 8.5 |
| 2" | 1.97 | 2.07 | 2.41 | 2.99 | 5.51 | 4.13 | 4.13 | 0.75 | 7.09 | 0.34 | 1.97 | F05 | M6*1.0 | 9/16"-18UNF | 284.1 | 13.6 |
