366FTDM
Stainless Steel Full Port 3-Piece Direct Mount Ball Valve, Threaded Ends, 1000 WOG
DESIGN FEATURES
| Sizes | 1/4" - 4" | |
| Class | Figure # | |
| Pressures | 1000 WOG | 366FTDM |
| 1000 WOG | 366FWDM | |
| Material | CF8M | |
| Ends | Threaded & Socketweld | |
| Trim | 316 Stainless Steel Trim; PTFE Packing & Gasket; TFM 1600 Seats; Viton O-Ring | |
| Features | ISO 5211 Direct Mounting Pad; Anti-Static Device; 150 PSIG Saturated Steam Rating | |
| ITEM | PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A351-CF8M |
| 2 | CAP | ASTM A351-CF3M |
| 3 | BALL | ASTM A351-CF8M |
| 4 | STEM | ASTM A276-316 |
| 5 | SEAT | TFM 1600 |
| 6 | GASKET | PTFE |
| 7 | THRUST WASHER | PTFE |
| 8 | PACKING | PTFE |
| 9 | O-RING | VITON |
| 10 | DISC SPRING | SS 301 |
| 11 | HANDLE | STAINLESS STEEL |
| 12 | STEM NUT | AISI 304 |
| 13 | STOPPER | AISI 304 |
| 14 | GLAND RING | AISI 304 |
| 15 | LOCK DEVICE | AISI 304 |
| 16 | BOLT | AISI 304 |
| 17 | NUT | AISI 304 |
| 18 | SPRING WASHER | AISI 304 |
| 19 | HANDLE SLEEVE | PVC |
| ITEM | PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A351-CF8M |
| 2 | CAP | ASTM A351-CF3M |
| 3 | BALL | ASTM A351-CF8M |
| 4 | RETAINER | ASTM A351-CF8M |
| 5 | STEM | ASTM A276-316 |
| 6 | SEAT | TFM 1600 |
| 7 | GASKET | PTFE |
| 8 | THRUST WASHER | PTFE |
| 9 | PACKING | PTFE |
| 10 | O-RING | VITON |
| 11 | DISC SPRING | SS 301 |
| 12 | HANDLE | AISI 304 |
| 13 | STOPPER | AISI 304 |
| 14 | GLAND RING | AISI 304 |
| 15 | LOCK DEVICE | AISI 304 |
| 16 | BOLT | AISI 304 |
| 17 | NUT | AISI 304 |
| 18 | SPRING WASHER | AISI 304 |
| 19 | STEM NUT | AISI 304 |

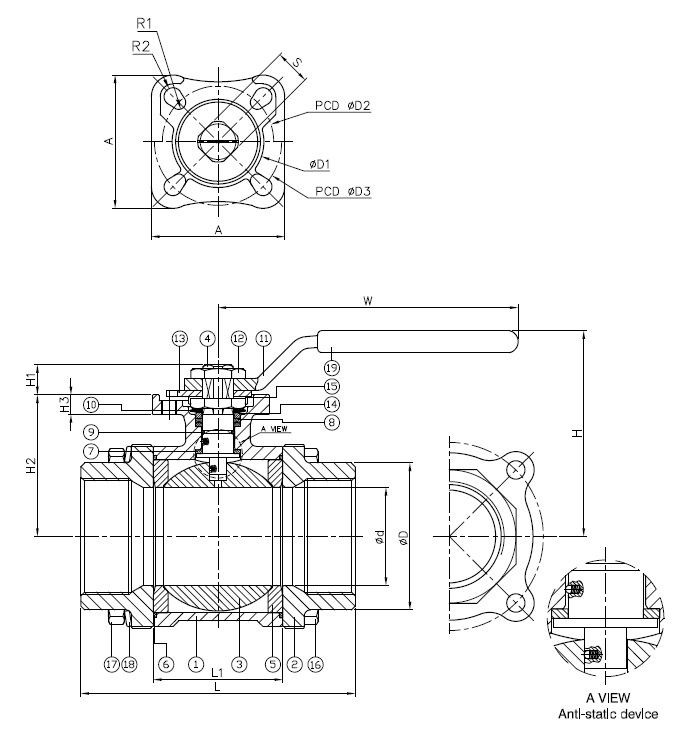

| Size (NPS) | d | D | L | L1 | H | H1 | H2 | W | S | A | D1 | D2 | D3 | R1 | R2 | ISO 5211 | Torque (in-lb) Action | Torque (in-lb) Breakaway | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 0.31 | 0.83 | 2.48 | 0.31 | 1.59 | 0.31 | 1.59 | 4.72 | 0.35 | 0.26 | 1.65 | 1.22 | 1.42 | 1.65 | 0.11 | F03/F04 | 21.9 | 32.2 | 1.3 |
| 3/8" | 0.39 | 0.83 | 2.48 | 0.31 | 1.59 | 0.31 | 1.59 | 4.72 | 0.35 | 0.26 | 1.65 | 1.22 | 1.42 | 1.65 | 0.11 | F03/F04 | 21.9 | 32.2 | 1.3 |
| 1/2" | 0.59 | 1.1 | 2.48 | 0.31 | 1.59 | 0.31 | 1.59 | 4.72 | 0.35 | 0.26 | 1.65 | 1.22 | 1.42 | 1.65 | 0.11 | F03/F04 | 21.9 | 32.2 | 1.3 |
| 3/4" | 0.79 | 1.38 | 2.72 | 0.35 | 1.77 | 0.35 | 1.77 | 4.72 | 0.35 | 0.26 | 1.65 | 1.22 | 1.42 | 1.65 | 0.11 | F03/F04 | 35.4 | 54.1 | 1.8 |
| 1" | 0.98 | 1.65 | 3.54 | 1.38 | 2.99 | 0.39 | 1.87 | 5.83 | 0.43 | 0.3 | 1.97 | 1.4 | 1.65 | 1.97 | 0.11 | F04/F05 | 38 | 87.4 | 2.6 |
| 1 1/4" | 1.26 | 2.05 | 4.33 | 1.76 | 3.31 | 0.43 | 2.19 | 5.83 | 0.43 | 0.3 | 1.97 | 1.4 | 1.65 | 1.97 | 0.11 | F04/F05 | 103.6 | 138.1 | 3.7 |
| 1 1/2" | 1.5 | 2.32 | 4.72 | 2.15 | 3.9 | 0.47 | 2.57 | 7.01 | 0.55 | 0.35 | 2.76 | 2.2 | 1.97 | 2.76 | 0.14 | F05/F07 | 123.9 | 194.7 | 6.4 |
| 2" | 1.97 | 2.83 | 5.51 | 2.6 | 4.25 | 0.47 | 2.87 | 7.01 | 0.55 | 0.35 | 2.76 | 2.2 | 1.97 | 2.76 | 0.14 | F05/F07 | 168.2 | 237 | 8.6 |

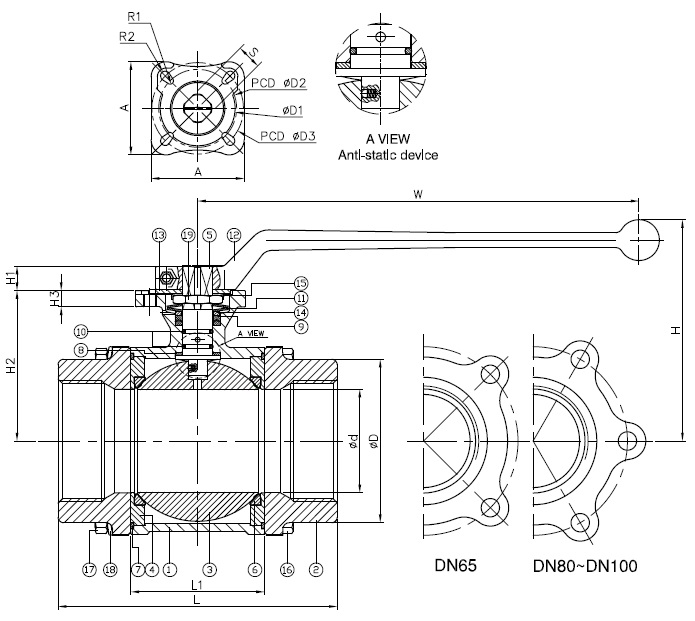

| Size (NPS) | d | D | L | L1 | H | H1 | H2 | H3 | W | S | A | D1 | D2 | D3 | R1 | R2 | ISO 5211 | Torque (in-lb) Action | Torque (in-lb) Breakaway | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 1/2" | 2.56 | 3.62 | 7.28 | 3.46 | 6.22 | 0.67 | 4.13 | 0.39 | 12.8 | 0.67 | 3.94 | 2.76 | 2.76 | 4.02 | 0.18 | 0.22 | F07/F10 | 270.4 | 789.3 | 21.6 |
| 3" | 2.99 | 4.09 | 8.07 | 3.86 | 6.5 | 0.67 | 4.39 | 0.39 | 12.8 | 0.67 | 3.94 | 2.76 | 2.76 | 4.02 | 0.18 | 0.22 | F07/F10 | 575.3 | 858.5 | 28.4 |
| 4" | 3.94 | 5.51 | 9.45 | 4.72 | 7.44 | 0.87 | 5.35 | 0.47 | 12.8 | 0.87 | 4.92 | 3.94 | 4.02 | 4.92 | 0.22 | 0.26 | F10/F12 | 619.5 | 1026.7 | 52 |
NOTE: The information and data in this product data sheet is provided on this website as a general guide only. The information and data displayed are accurate to the best of our knowledge, and may be revised at any time without notice. Ohio Valve Company assumes no responsibility for the accuracy of this information as displayed on this website. Contact Ohio Valve Company directly for the most current product dimensional data and general assembly drawings.
