166R150FS
Stainless Steel Reduced Port Ball Valve, Flanged Ends, Class 150, Fire Safe
CONTACT US
166R150FS
DESIGN FEATURES
  • API 607 Fire Safe Design
  • NACE MR0103

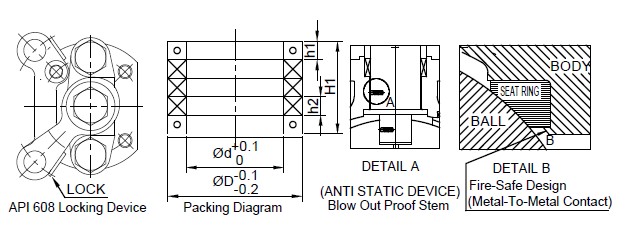

  • Locking Device
  • ISO 5211 Mounting Pad
  • Anti-Static Device
  • Pressure Relief Vent on Ball
  • Lever & Worm Gear
  • Uni-Body Design
  • ABS Certified
Sizes 1/2" - 6"
Class Figure
Pressures 150 166R150FS
Material CF8M
Ends Flanged
Trim TFM 1600 Seats; Low-Emission Graphite Packing - 100ppm; NACE - MR0103; API 607 Fire-Safe Design
Features  ABS Certified; Locking Device; ISO 5211 Mounting Pad; Anti-Static Device; Pressure Relief Vent on Ball; Lever & Worm Gear; Uni-body design
