DESIGN FEATURES
| Sizes | 1/2" - 12" | |
| Class | Figure # | |
| Pressures | 150 | 256F150FS |
| 300 | 256F300FS | |
| 600 | 256F600FS | |
| Material | A216 WCB | |
| Ends | Flanged | |
| Trim | TFM 1600 Seats; 316 Stainless Steel Trim; Low Emission Graphite Packing - 100 ppm; NACE MR0103; API 607 Fire Safe Design | |
| Features | ABS Certified; Locking Device; ISO 5211; Anti-Static Device; Pressure Relief Vent on Ball; Lever & Worm Gear; HNBR O-Rings on All 600# Designs | |
| NO | PART NAME | QTY | MATERIAL | REMARKS |
|---|---|---|---|---|
| 1 | BODY | 1 | A216-WCB | |
| 2 | CAP | 1 | A216-WCB | |
| 3 | STEM | 1 | 17-4PH | |
| 4 | BALL | 1 | A351-CF8M | |
| 5 | GLAND RING | 1 | A276-316 | |
| 6 | GLAND FLANGE | 1 | A351-CF8 | |
| 7 | SEAT RING | 2 | TFM1600 | |
| 8 | GASKET | 1 | SPW316+Graphite | |
| 9 | GLAND PACKING | 1S | Teadit 2236+Expanded Graphite | |
| 10 | THRUST WASHER | 1 | RTFE | |
| 11 | CAP BOLT | 1S | A193-B7M | |
| 12 | CAP NUT | 1S | A194-2HM | |
| 13 | GLAND BOLT | 2 | A193-B8 | |
| 14 | SNAP RING | 1 | A686-W1 | Ni Plated Only 3" |
| 15 | HANDLE | 1 | A536 | |
| 16 | STOPPER | 1 | A240-304 | |
| 17 | LOCKING PLATE | 1 | AISI 1020 | Zn Plated |
| 18 | LOCKING BOLT | 2 | A307-B | Zn Plated |
| 19 | TOP BOLT | 1 | A193-B8 | |
| 20 | TOP WASHER | 1 | A240-304 | |
| 21 | ANTI STATIC | 1S | A276-316L | |
| 22 | FIRE SAFE TAG | 1 | PVC | |
| 23 | NACE TAG | 1 | PVC | |
| 24 | LOW EMISSION TAG | 1 | SS |

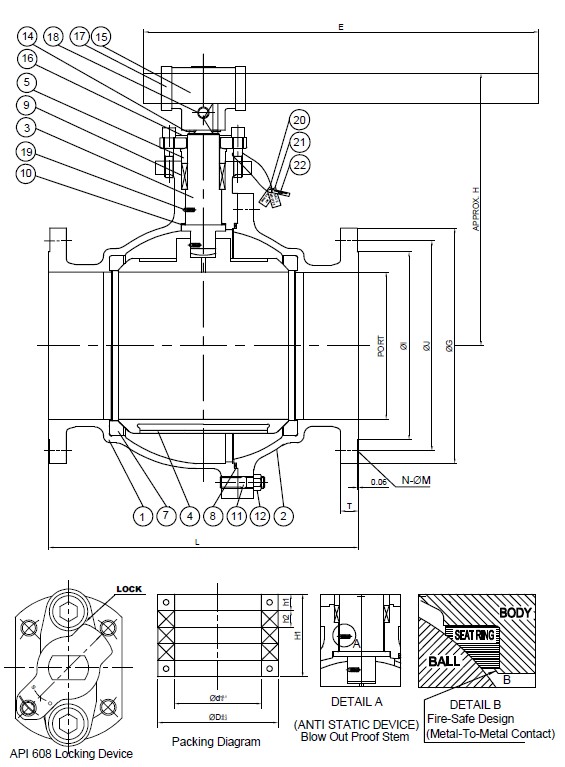

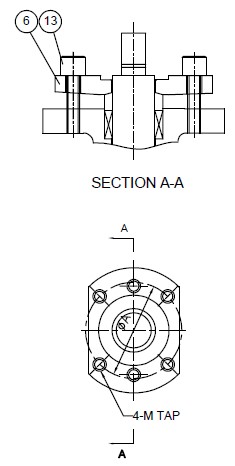

| NO | PART NAME | QTY | MATERIAL | REMARKS |
|---|---|---|---|---|
| 1 | BODY | 1 | A216-WCB | |
| 2 | CAP | 1 | A216-WCB | |
| 3 | STEM | 1 | 17-4PH | |
| 4 | BALL | 1 | A351-CF8M | |
| 5 | GLAND RING | 1 | A276-316 | |
| 6 | GLAND FLANGE | 1 | A351-CF8 | |
| 7 | SEAT RING | 2 | TFM1600 | |
| 8 | GASKET | 1 | SPW316+Graphite | |
| 9 | GLAND PACKING | 1S | Teadit 2236+Expanded Graphite | |
| 10 | THRUST WASHER | 1 | RTFE | |
| 11 | CAP BOLT | 1S | A193-B7M | |
| 12 | CAP NUT | 1S | A194-2HM | |
| 13 | GLAND BOLT | 2 | A193-B8 | |
| 14 | SNAP RING | 1 | A686-W1 | Ni Plated Only 3" |
| 15 | HANDLE | 1 | CARBON STEEL | |
| 16 | STOPPER | 1 | A240-304 | |
| 17 | HANDLE GUIDE | 1 | A536 | |
| 18 | SET SCREW | 1 | A193-B8 | |
| 19 | ANTI STATIC | 1S | A276-316L | |
| 20 | FIRE SAFE TAG | 1 | PVC | |
| 21 | NACE TAG | 1 | PVC | |
| 22 | LOW EMISSION TAG | 1 | SS |
| Size | PORT | L | E | H | ØI | ØJ | ØG | T | N | ØM | ØD | Ød | H1 | h1 | h2 | Weight (lbs) | CV (GPM) | Torque (lbf.in) | Body Bolts Torque (lbf.in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.51 | 5.5 | 5.1 | 3.7 | 1.38 | 2.62 | 3.75 | 0.56 | 4 | 0.62 | 0.66 | 0.43 | 0.354 | 0.127 | 0.09 | 5.29 | 28 | 29 | 528 |
| 3/4" | 0.75 | 6 | 5.1 | 3.89 | 1.69 | 3.25 | 4.62 | 0.62 | 4 | 0.75 | 0.66 | 0.43 | 0.354 | 0.127 | 0.09 | 7.93 | 61 | 38 | 528 |
| 1" | 1 | 6.5 | 6.1 | 4.01 | 2 | 3.5 | 4.88 | 0.69 | 4 | 0.75 | 0.82 | 0.59 | 0.393 | 0.127 | 0.147 | 11.24 | 110 | 47 | 912 |
| 1 1/2" | 1.496 | 7.5 | 9.1 | 5.19 | 2.88 | 4.5 | 6.12 | 0.81 | 4 | 0.88 | 1.14 | 0.82 | 0.472 | 0.16 | 0.18 | 23.8 | 260 | 298 | 3408 |
| 2" | 2 | 8.5 | 9.1 | 6.1 | 3.62 | 5 | 6.5 | 0.88 | 8 | 0.75 | 1.14 | 0.82 | 0.472 | 0.14 | 0.16 | 31.3 | 505 | 446 | 4560 |
| 2 1/2" | 2.5 | 9.5 | 14.7 | 5.7 | 4.12 | 5.88 | 7.5 | 1 | 8 | 0.88 | 1.417 | 1.1 | 0.511 | 0.155 | 0.2 | 46.73 | 817 | 364 | 4560 |
| 3" | 2.99 | 11.12 | 14.7 | 6.57 | 5 | 6.62 | 8.25 | 1.12 | 8 | 0.88 | 1.417 | 1.1 | 0.511 | 0.155 | 0.2 | 62.83 | 1152 | 681 | 6840 |
| 4" | 4 | 12 | 17.7 | 7.79 | 6.19 | 7.88 | 10 | 1.25 | 8 | 0.88 | 1.692 | 1.377 | 0.629 | 0.149 | 0.165 | 110.4 | 2135 | 867 | 9120 |
| Size | PORT | L | E | H | ØI | ØJ | ØG | T | N-ØM | ØM | ØD | Ød | H1 | h1 | h2 | Weight (lbs) | CV (GPM) | Torque (lbf.in) | Body Bolts Torque (lbf.in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6" | 5.984 | 15.86 | 23.6 | 12.2 | 8.5 | 10.62 | 12.5 | 1.44 | 12 | 0.88 | 2.08 | 1.77 | 0.787 | 0.145 | 0.165 | 227 | 5,048 | 4,208 | 20400 |
| 8" | 7.992 | 19.75 | 31.5 | 14.56 | 10.62 | 13 | 15 | 1.62 | 12 | 1 | 2.44 | 2.04 | 0.984 | 0.185 | 0.2 | 385.8 | 9,319 | 9,282 | 38880 |
NOTE: The information and data in this product data sheet is provided on this website as a general guide only. The information and data displayed are accurate to the best of our knowledge, and may be revised at any time without notice. Ohio Valve Company assumes no responsibility for the accuracy of this information as displayed on this website. Contact Ohio Valve Company directly for the most current product dimensional data and general assembly drawings.
