266F150FS
Stainless Steel Full Port Ball Valve, Flanged Ends, Class 150, Fire Safe
CONTACT US
266F150FS 266F300FS 266F600FS
DESIGN FEATURES
  • API 607 Fire Safe Design
  • NACE MR0103
  • ISO 5211 Mounting Pad
  • Locking Device
  • Anti-Static Device
  • Pressure Relief Vent on Ball
  • Lever & Worm Gear
Sizes 1/2" - 12"
Class Figure
Pressures 150 266F150FS
300 266F300FS
600 266F600FS
Material CF8M
Ends Flanged
Trim TFM 1600 Seats; Low Emission Graphite Packing - 100 ppm; NACE MR0103; API 607 Fire Safe Design
Features ABS Certified; ISO 5211 Mounting Pad; Anti-Static Device; Pressure Relief Vent on Ball; Lever & Worm Gear; HNBR O-Rings on All 600# Design

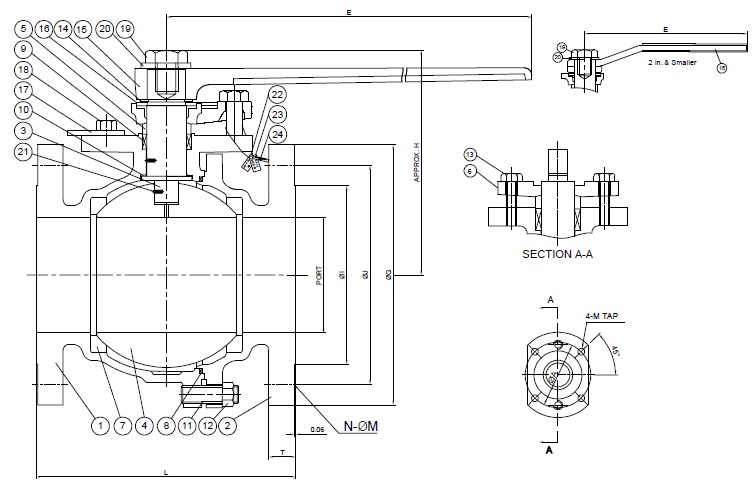

NO PART NAME QTY MATERIAL REMARKS
1 BODY 1 A351-CF8M
2 CAP 1 A351-CF8M
3 STEM 1 17-4PH
4 BALL 1 A351-CF8M
5 GLAND RING 1 A276-316
6 GLAND FLANGE 1 A351-CF8
7 SEAT RING 2 TFM1600
8 GASKET 1 SPW316+Graphite
9 GLAND PACKING 15 Teadit 2236+Expanded Graphite
10 THRUST WASHER 1 RTFE
11 CAP BOLT 15 A193-B8MA
12 CAP NUT 15 A194-8MA
13 GLAND BOLT 2 A193-B8
14 SNAP RING 1 A686-W1 Ni Plated Only 3"
15 HANDLE 1 A536
16 STOPPER 1 A240-304
17 LOCKING PLATE 1 A240-304
18 LOCKING BOLT 2 A193-B8
19 TOP BOLT 1 A193-B8
20 TOP WASHER 1 A240-304
21 ANTI STATIC 15 A276-316L
22 FIRE SAFE TAG 1 PVC
23 NACE TAG 1 PVC
24 LOW EMISSION TAG 1 SS

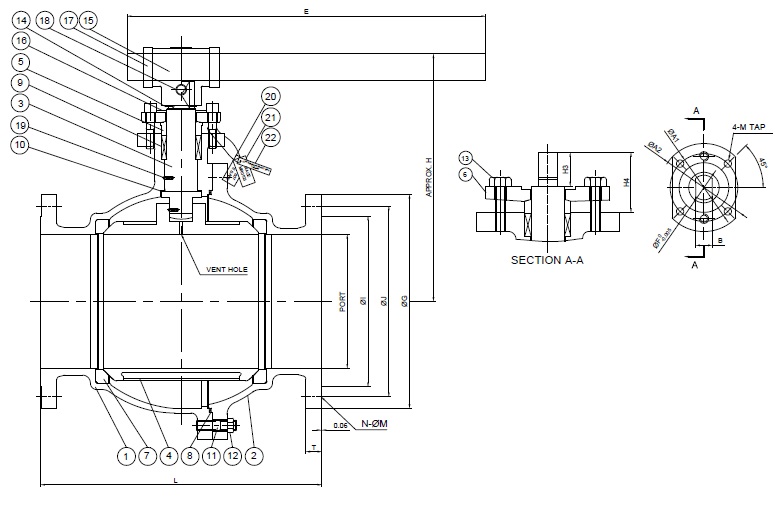

NO PART NAME QTY MATERIAL REMARKS
1 BODY 1 A351-CF8M
2 CAP 1 A351-CF8M
3 STEM 1 17-4PH
4 BALL 1 A351-CF8M With Vent Hole
5 GLAND RING 1 A276-316
6 GLAND FLANGE 1 A351-CF8
7 SEAT RING 2 TFM1600
8 GASKET 1 SPW316+Graphite
9 GLAND PACKING 15 Teadit 2236+Expanded Graphite
10 THRUST WASHER 1 RTFE
11 CAP BOLT 15 A193-B8MA
12 CAP NUT 15 A194-8MA
13 GLAND BOLT 2 A193-B8
14 SNAP RING 1 A686-W1 Ni Plated Only 3"
15 HANDLE 1 CARBON STEEL
16 STOPPER 1 A240-304
17 HANDLE GUIDE 1 A536
18 SET SCREW 1 A193-B8
19 ANTI STATIC 15 A276-316L
20 FIRE SAFE TAG 1 PVC
21 NACE TAG 1 PVC
22 LOW EMISSION TAG 1 SS

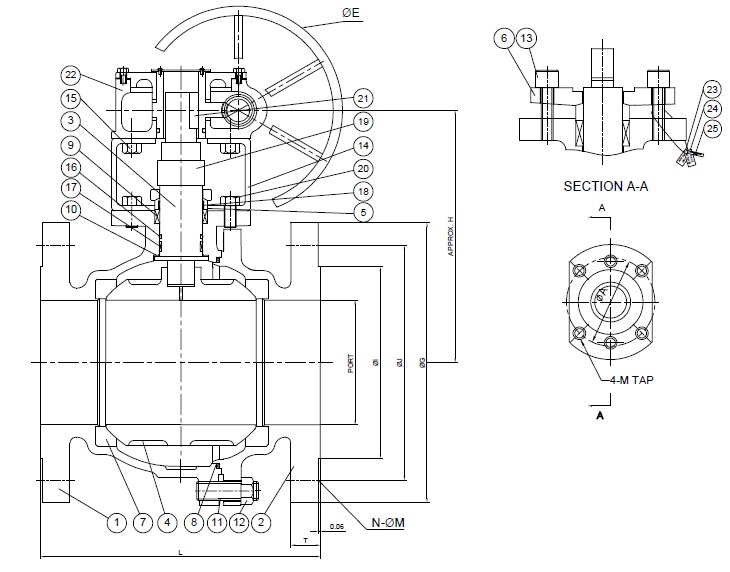

NO PART NAME QTY MATERIAL REMARKS
1 BODY 1 A351-CF8M
2 CAP 1 A351-CF8M
3 STEM 1 17-4PH
4 BALL 1 A351-CF8M
5 GLAND RING 1 A276-316
6 GLAND FLANGE 1 A351-CF8
7 SEAT RING 2 TFM1600
8 GASKET 1 SPW316+Graphite
9 GLAND PACKING 15 Teadit 2236+Expanded Graphite
10 THRUST WASHER 1 RTFE
11 CAP BOLT 15 A193-B8MA
12 CAP NUT 15 A194-8MA
13 GLAND BOLT 2 A193-B8
14 YOKE 2 AISI 1020 Zn Plated
15 YOKE BOLT 15 A193-B8
16 O-RING 1 HNBR
17 STEM BEARING 1 PTFE
18 GLAND BEARING 1 PTFE
19 COUPLING 1 A479-410
20 MOUNTING BOLT 15 A193-B8
21 KEY 1 AISI 1045
22 GEAR BOX 1 A536
23 FIRE SAFE TAG 1 PVC
24 NACE TAG 1 PVC
25 LOW EMISSION TAG 1 SS

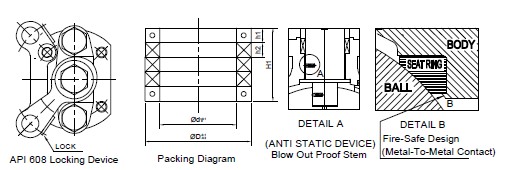

Size PORT L E H ØI ØJ ØG T N ØM ØD Ød H1 h1 h2 Weight (lbs) CV (GPM) Torque (lbf.in) Body Bolts Torque (lbf.in)
1/2" 0.51 4.25 5.1 3.7 1.38 2.38 3.5 0.44 4 0.62 0.66 0.43 0.354 0.127 0.09 3.96 28 22 528
3/4" 0.75 4.61 5.1 3.89 1.69 2.75 3.88 0.44 4 0.62 0.66 0.43 0.354 0.127 0.09 5.07 61 28 528
1" 1.0 5.0 6.1 4.01 2.0 3.12 4.25 0.44 4 0.62 0.82 0.59 0.393 0.127 0.147 7.05 110 35 912
1 1/4" 1.26 6.5 6.1 4.40 2.50 3.88 5.25 0.56 4 0.62 0.82 0.59 0.393 0.127 0.147 14.55 155 110 912
1 1/2" 1.496 6.5 9.1 5.0 2.88 3.88 5.0 0.56 4 0.62 1.14 0.82 0.472 0.16 0.18 14.55 260 155 3408
2" 2.0 7.0 9.1 5.9 3.62 4.75 6.0 0.62 4 0.75 1.14 0.82 0.472 0.14 0.16 21.6 505 224 2256
2 1/2" 2.5 7.5 14.7 5.7 4.12 5.5 7.0 0.69 4 0.75 1.417 1.10 0.511 0.155 0.2 34.83 817 364 2256
3" 2.99 8.0 14.7 6.29 5.0 6.0 7.5 0.75 4 0.75 1.417 1.10 0.511 0.155 0.2 46.95 1152 681 6684
4" 4.0 9.0 17.7 7.55 6.19 7.5 9.0 0.94 8 0.75 1.692 1.377 0.629 0.149 0.165 76.5 2135 867 4512

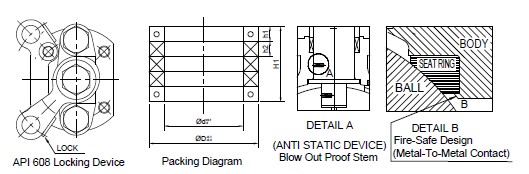

Size PORT L E H ØI ØJ ØG T N ØM ØD Ød H1 h1 h2 Weight (lbs) CV (GPM) Torque (lbf.in) Body Bolts Torque (lbf.in)
6" 5.984 15.5 23.6 12.2 8.5 9.5 11.0 1.0 8 0.88" 2.08 1.77 0.787 0.145 0.165 163.14 5048 2600 791
8" 7.992 18.0 31.5 14.56 10.62 11.75 13.5 1.12 8 0.88" 2.44 2.04 0.984 0.185 0.20 288.8 9319 4580 2301
Size PORT L DE H ØI ØJ ØG T N ØM ØD Ød H1 h1 h2 Weight (lbs) CV (GPM) Torque (lbf.in) Body Bolts Torque (lbf.in)
10" 10 21.0 27.95 19.49 12.75 14.25 16.0 1.19 12 1.0" 2.952 2.165 1.968 0.393 0.393 454.15 14590 9653 38880

NOTE: The information and data in this product data sheet is provided on this website as a general guide only. The information and data displayed are accurate to the best of our knowledge, and may be revised at any time without notice. Ohio Valve Company assumes no responsibility for the accuracy of this information as displayed on this website. Contact Ohio Valve Company directly for the most current product dimensional data and general assembly drawings.
