Stainless Steel 3-Way Full Port Ball Valve, Flanged Ends, L-Port, Class 150
CONTACT US
3T66F150DM
DESIGN FEATURES
  • ISO 5211 Direct Mounting Pad
  • Locking Device
  • Lever
Sizes 1 1/2" - 4"
Class Figure
Pressures 150 3T66F150DM
150 3L66F150DM
Material CF8M
Ends Flanged
Trim T-Port & L-Port
Features Locking Device; ISO 5211 Direct Mounting Pad; Lever

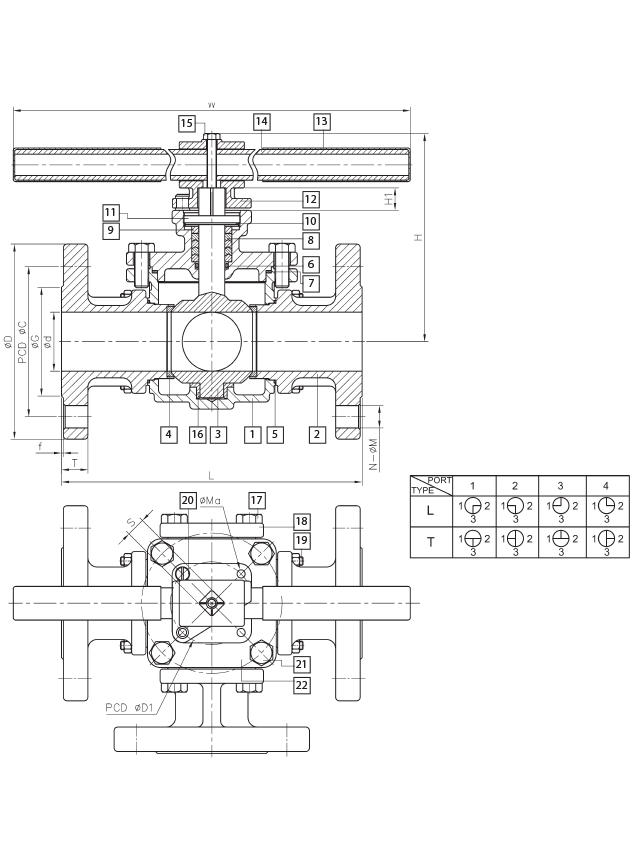

3L66F150DM 3T66F150DM Drawing
0.5″ – 1″
Item Parts Material
1 BODY ASTM A351-CF8M
2 CAP ASTM A351-CF8M
3 BALL ASTM A351-CF8M
4 SEAT RTFE
5 STEM SUS 316
6 GASKET RTFE
7 THRUST WASHER PEEK+PTFE
8 O-RING VITON
9 PACKING RTFE
10 GLAND RING SUS 304
11 SPRING WASHER SUS 301
12 STEM NUT SUS 304
13 STOP WASHER SUS 304
14 HANDLE WASHER SUS 304
15 LOCKING DEVICE SUS 304
16 HANDLE SUS 304
17 HANDLE SLEEVE PLASTIC
18 CAP-A ASTM A351-CF8M
19 CAP-A BOLT SUS 304
20 STOP PIN SUS 304
21 BOLT SUS 304
22 NUT SUS 304
3L66F150DM 3T66F150DM Drawing
1.25″ – 8″
Item Parts Material
1 BODY ASTM A351-CF8M
2 CAP ASTM A351-CF8M
3 BALL ASTM A351-CF8M
4 SEAT RTFE
5 GASKET RTFE
6 O-RING VITON
7 GASKET RTFE
8 PACKING RTFE
9 GLAND RING SUS 304
10 SPRING WASHER SUS 301
11 GLAND FLANGE ASTM A351-CF8
12 SLEEVE RTFE
13 STUD SUS 304
14 CAP-A BOLT SUS 304
15 CAP-A ASTM A351-CF8M
16 CAP-B BOLT SUS 304
17 CAP-B ASTM A351-CF8M
18 STUD SUS 304
19 HANDLE HEAD ASTM A351-CF8
20 HANDLE SLEEVE PLASTIC
21 HANDLE POLE GALVANIZED PIPE
22 HANDLE BOLT SUS 304
23 NUT SUS 304
24 NUT SUS 304
3L66F150DM 3T66F150DM Drawing
0.5″ – 1″
NPS d G C D L H H1 W T f S D1 D2 Ra Rb N M Torque (in-lb) Weight (lb)
0.5 0.59 1.38 2.38 3.5 5.83 3.15 0.35 4.84 0.44 0.06 0.35 1.42 1.65 0.12 0.12 4 0.63 115.1 8.2
0.75 0.79 1.69 2.76 3.86 6.02 3.31 0.35 4.84 0.44 0.06 0.35 1.42 1.65 0.12 0.12 4 0.63 115.1 11.7
1 0.98 2.01 3.13 4.25 6.61 3.78 0.43 6.02 0.44 0.06 0.43 1.65 1.97 0.12 0.14 4 0.63 287.6 17.2
3L66F150DM 3T66F150DM Drawing
1.2″ – 8″
NPS d G C D L H H1 H2 W T f S D1 D2 N M Ma Mb ISO 5211 Torque (lbs)
1.25 1.26 2.52 3.5 4.61 8.7 7.76 0.75 5.2 15.87 0.5 0.06 0.67 2.76 4.02 4 0.63 0.39 0.47 F07-F10 920.5
1.5 1.57 2.87 3.88 5 8.7 7.76 0.75 5.2 15.87 0.56 0.06 0.67 2.76 4.02 4 0.63 0.39 0.47 F07-F10 920.5
2 1.97 3.62 4.74 5.98 10 8.03 0.75 5.47 15.87 0.63 0.06 0.67 2.76 4.02 4 0.75 0.39 0.47 F07-F10 1265.7
2.5 2.56 4.13 5.49 7.01 11.81 9.49 0.94 6.38 19.84 0.69 0.06 0.87 4.02 4 0.75 0.47 F10 1956
3 2.99 5 6 7.48 12.01 9.65 0.94 6.73 19.84 0.75 0.06 0.87 4.02 4 0.75 0.47 F10 2416.2
4 3.78 6.18 7.5 9.02 14.53 10.71 0.94 7.56 25.75 0.94 0.06 0.87 4.02 8 0.75 0.47 F10 3106.6
6 5.83 8.5 9.51 10.98 18.9 14.21 1.5 10.2 31.5 1 0.06 1.42 5.51 8 0.87 0.71 F14 11505.9
8 7.87 10.63 11.75 13.5 24 15.24 1.57 11.1 39.37 1.13 0.06 1.42 5.51 8 0.87 0.71 F14 17258.9

NOTE: The information and data in this product data sheet is provided on this website as a general guide only. The information and data displayed are accurate to the best of our knowledge, and may be revised at any time without notice. Ohio Valve Company assumes no responsibility for the accuracy of this information as displayed on this website. Contact Ohio Valve Company directly for the most current product dimensional data and general assembly drawings.
