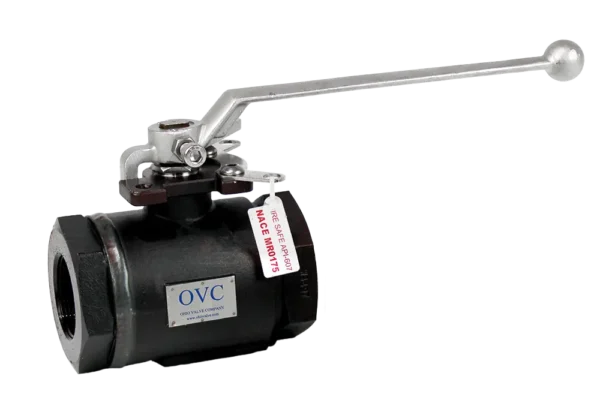

DESIGN FEATURES
| Sizes | 1/4" - 2" | |
| Class | Figure | |
| Pressures | 3600 WOG | 3266HP & 3266HPW |
| 3600 WOG | 3256HP & 3256HPW | |
| 6000 WOG | 6266HP | |
| 6000 WOG | 6256HP | |
| Material | CF8M & WCB | |
| Ends | Threaded & Socketweld | |
| Trim | Sealwelded Body Design; 316 Stainless Steel Trim; Graphite Packing & Seal; PEEK Seats | |
| Features | Slide Latch Locking Device; Fire Safe; NACE MR0175; ISO 5211 Mounting Pad; 250 PSIG Saturated Steam Rating | |

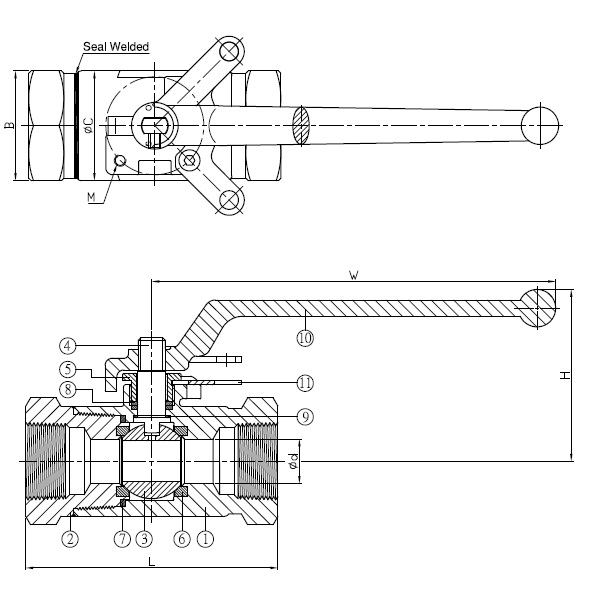

| ITEM | PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A216-WCB |
| 2 | CAP | ASTM A216-WCB |
| 3 | BALL | 17-4PH |
| 4 | STEM | 17-4PH |
| 5 | GLAND NUT | AISI 304 |
| 6 | SEAT | PEEK |
| 7 | SEAL | GRAPHITE |
| 8 | PACKING | GRAPHITE |
| 9 | THRUST WASHER | CTFE |
| 10 | HANDLE, LOCK PAD | AISI 304 |
| 11 | LOCK PAD | AISI 304 |
| Size (NPS) | d | B | C | L | H | W | M | ISO 5211 | Torque (in-lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 0.25 | 1.26 | 1.54 | 3 | 2.23 | 5.59 | M5*P0.8 | F03 | 84.1 | 1.5 |
| 1/2" | 0.5 | 1.26 | 1.54 | 4 | 2.23 | 5.59 | M5*P0.8 | F03 | 84.1 | 1.8 |
| 3/4" | 0.75 | 1.85 | 1.85 | 4.25 | 3 | 6.81 | M5 P0.8 | F04 | 247.8 | 2.9 |
| 1" | 1 | 1.89 | 2.35 | 4.49 | 3.01 | 6.81 | M5*P0.8 | F04 | 294.7 | 4.2 |
| 1 1/2" | 1.5 | 3.03 | 3.39 | 5.28 | 4.61 | 9.74 | M8*P1.25 | F07 | 469.1 | 10.8 |
| 2" | 2 | 3.23 | 4.17 | 6.22 | 4.88 | 9.74 | M8*P1.25 | F07 | 632.8 | 15.2 |
NOTE: The information and data in this product data sheet is provided on this website as a general guide only. The information and data displayed are accurate to the best of our knowledge, and may be revised at any time without notice. Ohio Valve Company assumes no responsibility for the accuracy of this information as displayed on this website. Contact Ohio Valve Company directly for the most current product dimensional data and general assembly drawings.
