4100
Ductile Iron Resilient Seated Butterfly Valve, Cartridge Seat, Wafer Series
DESIGN FEATURES
| Sizes | 2" - 48" | |
| Ends | Figure # | |
| Series | Lug | 4800, 4802 |
| Wafer | 4100 | |
| Operator | Lever & Gear | |
| Pressure | 200 PSI Rated | |
| Dead End Service | 200 PSI through 48" | |
| Disc Material Offerings | Ductile Iron with Ni-Coating; 316 Stainless Steel; Aluminum Bronze | |
| Cartridge Seat Offerings | EPDN; Buna-N; Viton; Teflon | |
| Design Standard | API 609 Cat. A / MSS SP67 Type 1 Compliant | |
| End Design | ASME B16.42 | |
| Top Flange | ISO 5211 | |
| Test Standard | API 598 Certified | |
| Potable Water & Lead Free | NSF 61 & NSF 372 Certified | |

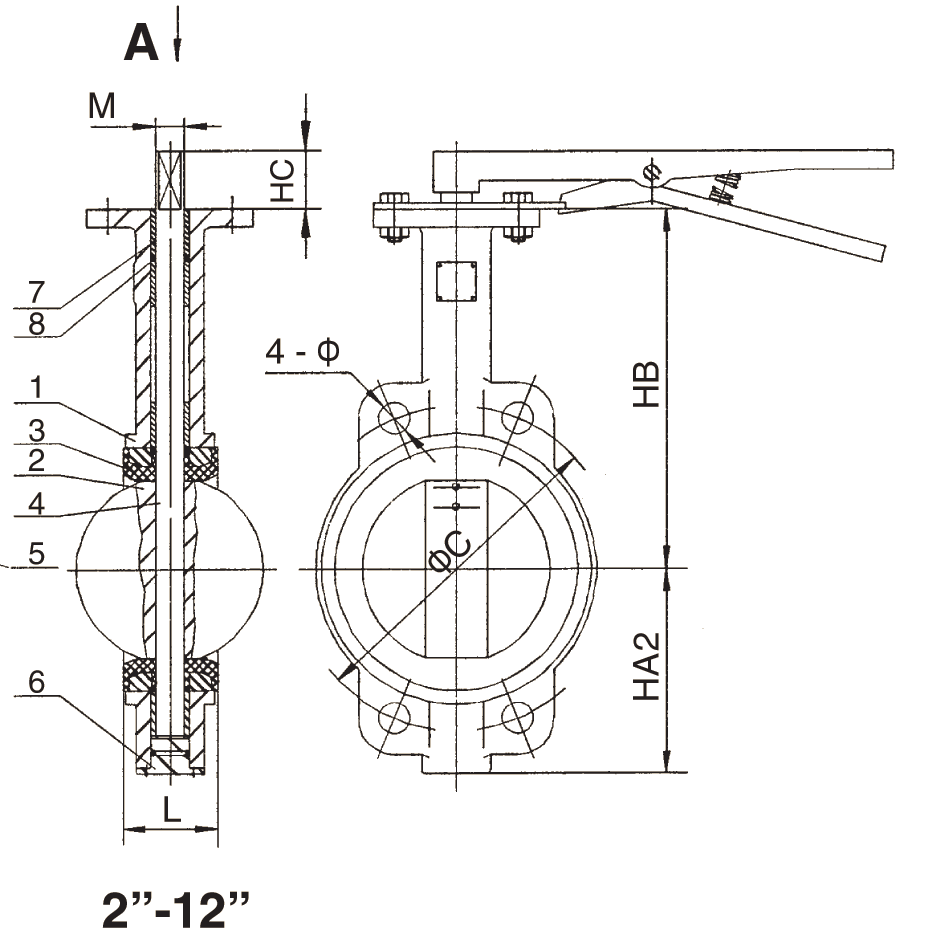

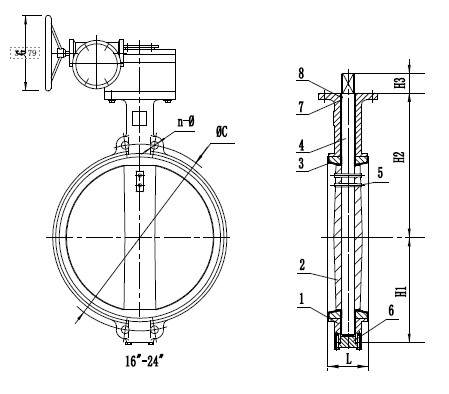

| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | DI |
| 2 | DISC | DI\SS316\AL-BRONZE |
| 3 | SEAT | EPDM BUNA VITON TEFLON |
| 4 | STEM | SS410 |
| 5 | TAPER PIN | SS316 |
| 6 | COVER | DI |
| 7 | BUSHING | TEFLON |
| 8 | O-RING | EPDM BUNA VITON |

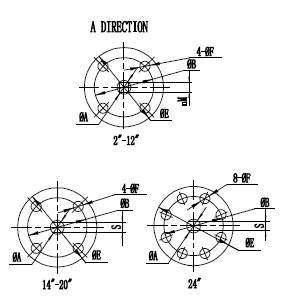

| Size | HI | H2 | H3 | L | DA | ØC | n-Ø | OB | OF | ØE | S | K | G | WEIGHT/lbs | LEVER/GEAR EPDM/NBR/VITON DRY/in. lbs | LEVER/GEAR EPDM/NBR/VITON WET/in. lbs | TEFLON DRY/in. lbs | TEFLON WET/in. lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2" | 2.992 | 6.378 | 1.181 | 1.811 | 0.5 | 4.744 | 4-5/8"-11 | 3.543 | 2.756 | 0.413 | 0.354 | - | 10.354 | 5.906 | 6.6/13.4 | 193 | 120 | 250 |
| 2.5" | 3.504 | 6.89 | 1.181 | 1.929 | 0.5 | 5.492 | 4-5/8"-11 | 3.543 | 2.756 | 0.413 | 0.354 | - | 10.354 | 5.906 | 8.6/14.8 | 260 | 137 | 284 |
| 3" | 3.74 | 7.126 | 1.181 | 1.929 | 0.5 | 6.004 | 4-5/8"-11 | 3.543 | 2.756 | 0.413 | 0.354 | - | 10.354 | 5.906 | 8.8/15.7 | 184 | 348 | 724 |
| 4" | 4.488 | 7.874 | 1.181 | 2.165 | 0.622 | 7.5 | 8-5/8"-11 | 3.543 | 2.756 | 0.413 | 0.433 | - | 10.354 | 5.906 | 12.3/18.9 | 579 | 317 | 1204 |
| 5" | 5 | 8.386 | 1.181 | 2.323 | 0.75 | 8.504 | 8-3/4"-10 | 3.543 | 2.756 | 0.413 | 0.551 | - | 10.354 | 5.906 | 16.1/22.5 | 860 | 493 | 1788 |
| 6" | 5.512 | 8.858 | 1.181 | 2.323 | 0.75 | 9.508 | 8-3/4"-10 | 3.543 | 2.756 | 0.413 | 0.551 | - | 10.354 | 5.906 | 18.7/39.1 | 812 | 1386 | 1690 |
| 8" | 6.811 | 10.236 | 1.417 | 2.52 | 0.874 | 11.752 | 8-3/4"-10 | 4.921 | 4.016 | 0.492 | 0.669 | - | 13.976 | 11.811 | 31.5/48.7 | 2628 | 1529 | 3168 |
| 10" | 7.992 | 11.496 | 1.417 | 2.815 | 1.126 | 14.252 | 12-7/8"-9 | 4.921 | 4.016 | 0.492 | 0.866 | - | 13.976 | 11.811 | 42.3/63.9 | 2573 | 4373 | 5336 |
| 12" | 9.528 | 13.26 | 1.417 | 3.189 | 1.252 | 17.008 | 12-7/8"-9 | 4.921 | 4.016 | 0.492 | 0.866 | - | 13.976 | 11.811 | 66.6/88.2 | 6364 | 3903 | 13212 |
| 14" | 10.71 | 14.488 | 1.772 | 3.13 | 1.252 | 18.74 | 12-1"-8 | 4.921 | 4.016 | 0.492 | - | 0.945 | - | 11.811 | 114.6 | 7301 | 4867 | 10204 |
| 16" | 11.732 | 15.748 | 2.008 | 3.543 | 1.311 | 21.24 | 16-1"-8 | 6.89 | 5.512 | 0.709 | - | 1.063 | - | 11.811 | 202.8 | 10027 | 6681 | 21221 |
| 18" | 12.52 | 16.732 | 2.008 | 4.291 | 1.496 | 22.756 | 16-1 1/8"-7 | 6.89 | 5.512 | 0.709 | - | 1.063 | - | 11.811 | 240.3 | 8956 | 13434 | 18115 |
| 20" | 14.174 | 18.898 | 2.52 | 5.315 | 1.62 | 25 | 20-1 1/8"-7 | 6.89 | 5.512 | 0.709 | - | 1.26 | - | 14.961 | 335.1 | 11947 | 17929 | 36478 |
| 24" | 17.48 | 22.126 | 2.756 | 6.142 | 1.994 | 29.508 | 20-1 1/4"-7 | 11.811 | 10 | 0.709 | - | 1.417 | - | 14.961 | 571 | 18681 | 28018 | 34354 |
NOTE: The information and data in this product data sheet is provided on this website as a general guide only. The information and data displayed are accurate to the best of our knowledge, and may be revised at any time without notice. Ohio Valve Company assumes no responsibility for the accuracy of this information as displayed on this website. Contact Ohio Valve Company directly for the most current product dimensional data and general assembly drawings.
