Ductile Iron Resilient Seated Butterfly Valve, Vulcanized Seat, Wafer Series
CONTACT US
4133
DESIGN FEATURES
  • API 609 Category A Compliant
  • MSS SP67 Type 1 Compliant
  • API 598 Certified
  • NSF 61 & NSF 372 Certified
  • ISO 5211 Mounting Pad
  • Pinless Stem to Disc Design
  • Dead End Service
  • Lever & Gear Operator
  • 250 – 300 PSI Pressure Rating (up through 24″)
Sizes 2" - 24"
Ends Figure #
Series Lug 4833, 4832
Wafer 4133, 4132
Operator Lever & Gear
Pressure 300 PSI Rated (up through 24")
Dead End Service 300 PSI through 12"
250 PSI through 14" - 24"
*200 PSI through 14" - 24" for Viton Vulcanized Seat
Disc Material Offerings Ductile Iron with Ni-Coating; 316 Stainless Steel; Aluminum Bronze
Vulcanized Seat Offerings EPDM; Buna-N, Viton*
Design Standard API 609 Category A / MSS SP67 Type 1 Compliant
Pinless Stem to Disc Design
End Design ASME B16.42
Top Flange ISO 5211
Test Standard API 598 Certified
Potable Water & Lead Free NSF 61 & NSF 372 Certified
4132 4133 Resilient Seated Butterfly Valve Certified Drawing
ITEM PARTS MATERIAL
1 BODY DI
2 SEAT EPDM / BUNA
3 DISC DI / SS316 / AL-BRONZE
4 STEM 2 - 14": SS420; ONE-PIECE STEM DESIGN
16" - 24": SS420; TWO-PIECE STEM DESIGN
5 O-RING EPDM / BUNA
6 BUSHING NYLON 1010
7 HEX BOLT CARBON STEEL
8 LEVER/GEAR DI

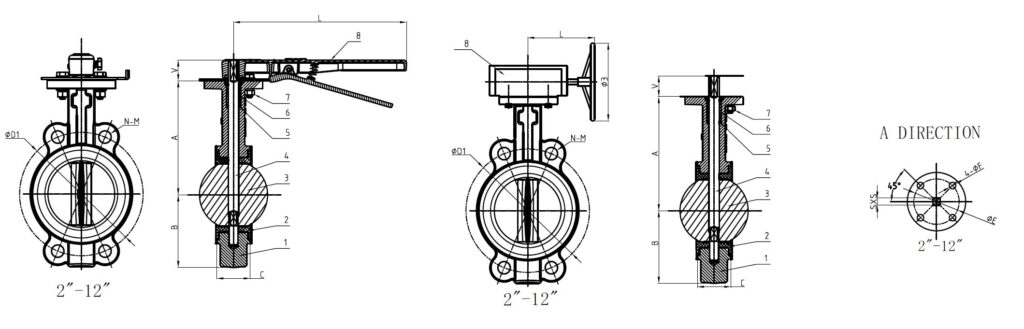

4133 Resilient Seated Butterfly Valves Certified Drawing
ITEM PARTS MATERIALS
1 BODY DI
2 SEAT VITON
3 DISC DI / SS316 / AL-BRONZE
4 STEM 22420
5 O-RING VITON
6 BUSING NYLON 1010
7 HEX BOLT CARBON STEEL
8 LEVER/GEAR DI
4132 4133 Resilient Seated Butterfly Valve Certified Drawing
INCH A B C V ØD ØD1 N-M BOLT LENGTH Ø3 ØE ØF S Ø2 LEVER/GEAR T G TORQUE
GEAR L WEIGHT LBS DRY/IN. LBS WET/IN. LBS
2 5.53 2.54 1.69 1.18 2.12 4.744 4-5/8"-11 4.44 5.9 2.756 0.39 0.35 - 10.5/6.22 6.94/11.72 - - 251 156
2.5 6.02 2.83 1.81 1.16 2.57 5.492 4-5/8"-11 4.81 5.9 2.756 0.39 0.35 - 10.5/6.22 7.99/12.76 - - 338 178
3 6.2 3.38 1.81 1.18 3.14 6.004 4-5/8"-11 5.06 5.9 2.756 0.39 0.35 - 10.5/6.22 8.72/13.49 - - 452 239
4 6.93 3.94 2.05 1.18 4.13 7.5 8-5/8"-11 5.3 5.9 2.756 0.39 0.43 - 10.5/6.22 10.97/15.75 - - 753 412
5 7.52 4.41 2.2 1.18 5.12 8.504 8-3/4"-10 5.45 5.9 2.756 0.39 0.55 - 10.5/6.22 13.42/18.19 - - 641 1118
6 7.97 5.04 2.2 1.18 6.14 9.508 8-3/4"-10 5.7 5.9 2.756 0.39 0.55 - 10.5/6.22 17.39/22.18 - - 1056 1802
8 9.59 6.38 2.36 1.57 8.14 11.752 8-3/4"-10 6.11 11.8 4.016 0.47 0.67 - 14.01/9.41 31.55/44.55 - - 1988 3416
10 10.75 7.64 2.68 1.57 9.97 14.252 12-7/8"-9 6.68 11.8 4.016 0.47 0.87 - 19.3/9.41 44.12/57.09 - - 3345 5685
12 12.24 8.78 3.07 1.57 11.88 17.008 12-7/8"-9 7.32 11.8 4.016 0.47 0.87 - 19.3/9.01 64.6/84.29 - - 8273 5074
14 13.39 10.51 3.07 1.77 13.15 18.74 12-1"-8 7.57 11.8 4.921 0.55 - 1.244 9.01 106.15 0.87 1.244 6327 9491
16 15.75 12.6 4.02 1.89 15.34 21.24 16-1/8" 8.77 14.96 5.512 0.71 - 1.307 11.34 214.34 1.062 1.307 8685 13035
18 16.61 13.58 4.49 1.89 17.36 22.756 16-1 1/8"-7 9.49 14.96 5.512 0.71 - 1.5 11.34 250.53 1.062 1.5 17464 11643
20 18.9 14.96 5 2.76 19.39 25 20-1 1/8"-7 10.5 11.8 6.496 0.87 - 1.62 8.46 349.26 1.26 1.62 15531 23307
24 22.13 17.36 6.06 2.76 23.34 29.508 20-1 1/4"-7 12.06 14.96 6.496 0.87 - 1.994 8.46 555.91 1.417 1.994 24285 36424
4133 Resilient Seated Butterfly Valves Certified Drawing
INCH A B C V ØD1 N-M BOLT LENGTH Ø3 (GEAR) ØE ØF □ S L WEIGHT/lbs TORQUE DRY (in·lbs) TORQUE WET (in·lbs)
2" 5.53 2.54 1.69 1.18 4.744 4-5/8"-11 4.44 5.9 2.756 0.39 0.35 10.5 /6.22 6.94 /11.72 251 156
2.5" 6.02 2.83 1.81 1.18 5.492 4-5/8"-11 4.81 5.9 2.756 0.39 0.35 10.5 /6.22 7.99 /12.76 338 178
3" 6.2 3.38 1.81 1.18 6.004 4-5/8"-11 5.06 5.9 2.756 0.39 0.35 10.5 /6.22 8.72 /13.49 452 239
4" 6.93 3.94 2.05 1.18 7.5 8-5/8"-11 5.3 5.9 2.756 0.39 0.43 10.5 /6.22 10.97 /15.75 753 412
5" 7.52 4.41 2.2 1.18 8.504 8-3/4"-10 5.45 5.9 2.756 0.39 0.55 10.5 /6.22 13.42 /18.19 1118 641
6" 7.97 5.04 2.2 1.18 9.508 8-3/4"-10 5.7 5.9 2.756 0.39 0.55 10.5 /6.22 17.39 /22.18 1802 1056
8" 9.59 6.38 2.36 1.57 11.752 8-3/4"-10 6.11 11.8 4.016 0.47 0.67 14.01 /9.41 31.55 /44.55 3416 1988
10" 10.75 7.64 2.68 1.57 14.252 12-7/8"-9 6.68 11.8 4.016 0.47 0.87 19.3 /9.41 44.12 /57.091 5685 3345
12" 12.24 8.78 3.07 1.57 17.008 12-7/8"-9 7.32 11.8 4.016 0.47 0.87 19.3 /9.01 64.6 /84.29 8273 5074
