DESIGN FEATURES
| Sizes | 1/4" - 2" | |
| Class | Figure # | |
| Pressures | 150# | GAN150FE |
| GLN150FE | ||
| SCN150FE | ||
| PCN150FE | ||
| 300# | GAN300FE | |
| GLN300FE | ||
| SCN300FE | ||
| Connection | Bolted Bonnet | |
| Material | A105N | |
| Ends | Flanged | |
| Trim | API Trim 8; NACE MR0103 & MR0175; Graphite Packing & Gasket to API 622 Low-Emission - 100 ppm | |
| Features | API 602 Design Standard | |

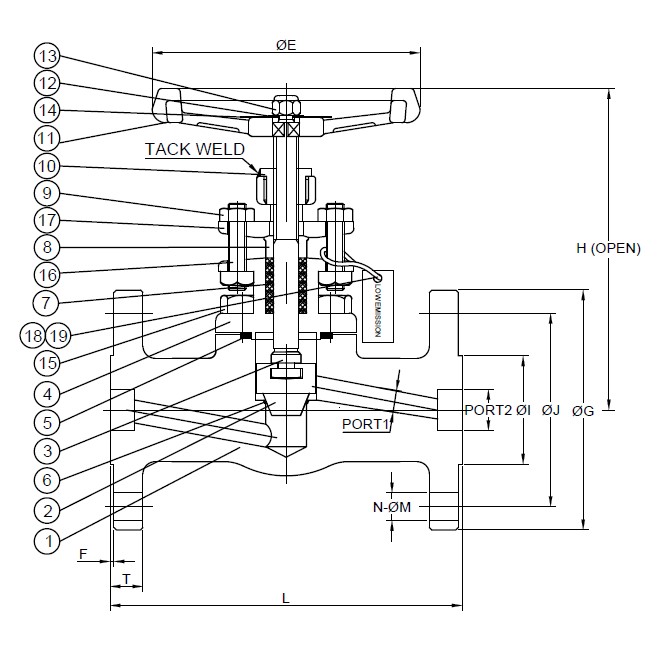

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A105N |
| 2 | DISC | ASTM A182 Gr.F6a |
| 3 | STEM | ASTM A182 Gr.F6a |
| 4 | BONNET | ASTM A105N |
| 5 | BODY SEAL | SS 304+GRAPHITE SW |
| 6 | SEAT | ASTM A105N+STL#6 |
| 7 | STEM PACKING | API 622 GRAPHITE |
| 8 | GLAND | ASTM A276 Gr.410 |
| 9 | GLAND NUT | ASTM A194 Gr.2HM |
| 10 | YOKE SLEEVE | ASTM A276 Gr.410 |
| 11 | HANDWHEEL | ASTM A197 |
| 12 | HANDLE WASHER | STAINLESS STEEL |
| 13 | H.W.NUT | ASTM A194 Gr.2HM |
| 14 | NAMEPLATE | SS304 |
| 15 | BODY BOLT | ASTM A193 Gr.B7M |
| 16 | GLAND BOLT | ASTM A193 Gr.B7M |
| 17 | GLAND FLANGE | ASTM A105N |
| 18 | LOW EMISSION TAG | ALUMINUM |
| 19 | CABLE TIE | SS WIRE |
| SIZE | PORT1 | PORT2 | L | ØE | H | ØG | ØJ | ØI | T | F | N | ØM | Weight (lbs) | Torque (lbf.in) | CV |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.37 | 0.59 | 6 | 3.94 | 5.67 | 3.75 | 2.62 | 1.38 | 0.57 | 0.06 | 4 | 5/8" | 8.3 | 411.5 | 1.5 |
| 3/4" | 0.5 | 0.79 | 7 | 3.94 | 5.7 | 4.62 | 3.25 | 1.69 | 0.63 | 0.06 | 4 | 3/4" | 11.9 | 548.7 | 3.8 |
| 1" | 0.69 | 0.98 | 8 | 4.72 | 6.69 | 4.88 | 3.5 | 2 | 0.69 | 0.06 | 4 | 3/4" | 16.5 | 685.9 | 6.8 |
| 1-1/4" | 0.89 | 1.26 | 8.5 | 5.91 | 9.49 | 5.25 | 3.88 | 2.5 | 0.75 | 0.06 | 4 | 3/4" | 23.2 | 754.5 | 11.3 |
| 1-1/2" | 1.13 | 1.57 | 9 | 5.91 | 9.54 | 6.12 | 4.5 | 2.88 | 0.83 | 0.06 | 4 | 7/8" | 25.8 | 823.1 | 14.3 |
| 2" | 1.44 | 1.97 | 10.5 | 6.69 | 9.92 | 6.5 | 5 | 3.62 | 0.89 | 0.06 | 8 | 3/4" | 54 | 1097.4 | 25 |
